50μm Polyimide Kapton Tape Engineered for High Temperature Electrical Applications

Name: 50μm Polyimide Kapton Tape Engineered for High Temperature Electrical Applications
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: -ES50
Price: 25.00 USD
Availability: InStock

Nama merek:	PUFENG
Nomor Model:	-ES50
MOQ:	1roll
harga:	USD1~USD50
Waktu Pengiriman:	3 ~ 5 hari kerja biasanya
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Merek:

PUFENG

Kisaran Suhu:

260 ℃

Bahan Dasar:

Film PI

Suhu:

-73℃ ~ 260℃

Jenis:

Pita Isolasi

Permukaan:

Halus, tidak ada gelembung

Menggunakan:

transformator, tahan suhu

Adhesi pada Baja:

5.5N/25mm

Aplikasi:

Isolasi listrik, penyamaran selama penyolderan, pencetakan 3D

Warna:

Amber

Tipe adhesi:

Silikon

Lebar:

12mm

Ketahanan Suhu:

-269°C hingga 260°C (-452°F hingga 500°F)

Perpanjangan Saat Istirahat:

Sekitar 50%

Khusus:

Isolasi / Tahan suhu tinggi

Mencicipi:

Sampel Gratis

Kemasan rincian:

Setiap gulungan: segel tas opp transparan; Kantong plastik; Kotak karton; Atau sebagai kebutuhan pel

Menyediakan kemampuan:

100000 Potongan Per Bulan

Menyoroti:

50μm Kapton tape high temperature

Polyimide tape electrical applications

Kapton tape engineered for heat

Deskripsi Produk

50μm Polyimide Kapton Tape for High Temperature Electrical Applications

Industrial grade 50μm polyimide Kapton tape with silicone adhesive, engineered for exceptional temperature resistance up to 260°C in demanding industrial applications including SMT and PCB masking.

Product Features

Thin, flexible design for optimal performance on uneven surfaces
Exceptional heat resistance up to 260°C
Clean removal without adhesive residue after high temperature exposure
High strength polyimide film with excellent puncture and tear resistance
Superior chemical resistance properties

Product Applications

Electronic circuit board wave soldering masking, electrical insulation, high-end finger protection, motor insulation, and lithium battery component fixation. Widely used in aviation, marine, spacecraft, missiles, rockets, atomic energy, and electrical/electronic industries.

Product Specifications

Brand	PUFENG
Model	PF050ES
Color	Tawny / Amber
Adhesive	Silicone
Material	PI Film
Thickness	0.05mm (Customizable)
Length	25mm, 33mm, 66mm
Width	1-500mm (Customizable)

Physical Parameters

Item	Unit	Parameter Values
Adhesion	N/25mm	5.5
Tensile Strength	N/25mm	115
Temperature	℃	260
Breakdown Voltage	KV	55

We supply various sizes of thermal resistance tape to meet different application requirements. Custom die-cutting services for polyimide tape are also available. Contact us with your specific size requirements for prompt quotations.

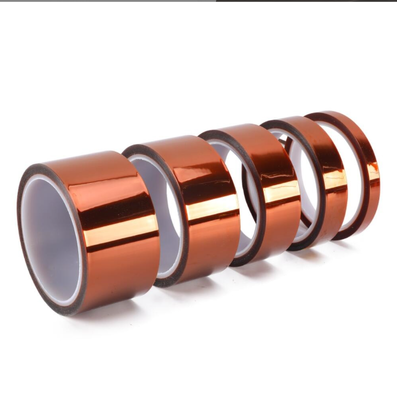

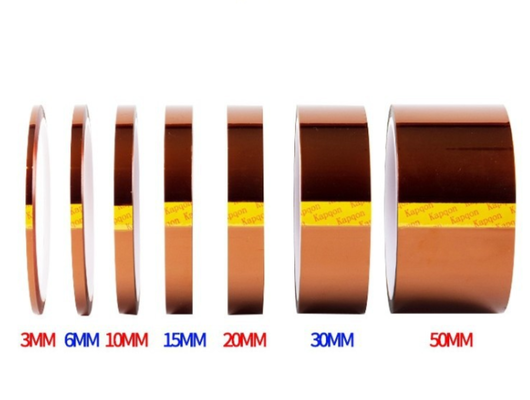

Product Display

Packaging & Transport

Company Profile

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer specializing in precision die-cutting solutions. We design and produce adhesive and insulation products, providing optimal solutions while enhancing product quality and performance for our customers.

Our operational principle is "Market-driven operation with sincerity, prioritizing client satisfaction and superior quality." PUFENG has established a strong technical team to develop precision products for global customers. Our quality principle emphasizes precise attention to every customer requirement detail.

Our Services

Prompt response to product inquiries within 12 hours
OEM and ODM project capabilities
Custom die-cutting and product design services
Comprehensive after-sales support
Custom packaging solutions and timely delivery

Frequently Asked Questions

How to order from Pufeng?
Simply contact us via email or phone to place your order.

Do you provide free samples for testing?
Yes, we provide complimentary samples free of charge.

How do you deliver the goods?
We recommend appropriate transport methods including sea, air, or express delivery. We can also accommodate your preferred shipping arrangements.

Can we trust the quality of Pufeng products?
Absolutely. Our product quality consistently matches the samples provided. We take full responsibility for quality assurance.

What payment methods does Pufeng accept?
For small quantities, we require 100% TT payment in advance. Other payment terms are negotiable based on order conditions.

What is the lead time for orders?
In-stock tape orders ship within 1-3 days. Die-cutting orders require additional time based on quantity and complexity.
